From install to first protected request — in seven steps

01

Install LocalGuard and look for it in the menu bar

Don't have LocalGuard yet? Grab the installer from the Download page — there's a build for macOS (.dmg), Windows (.exe) and Linux (.AppImage / .deb). After installing, launch the app: it lives quietly in your menu bar / system tray with a small shield icon. Click it any time to Open Dashboard, start or stop protection, or quit.

Tip: By default LocalGuard launches at login and starts protecting automatically — you don't need to do anything for protection to be on.

03

Pick a detection mode

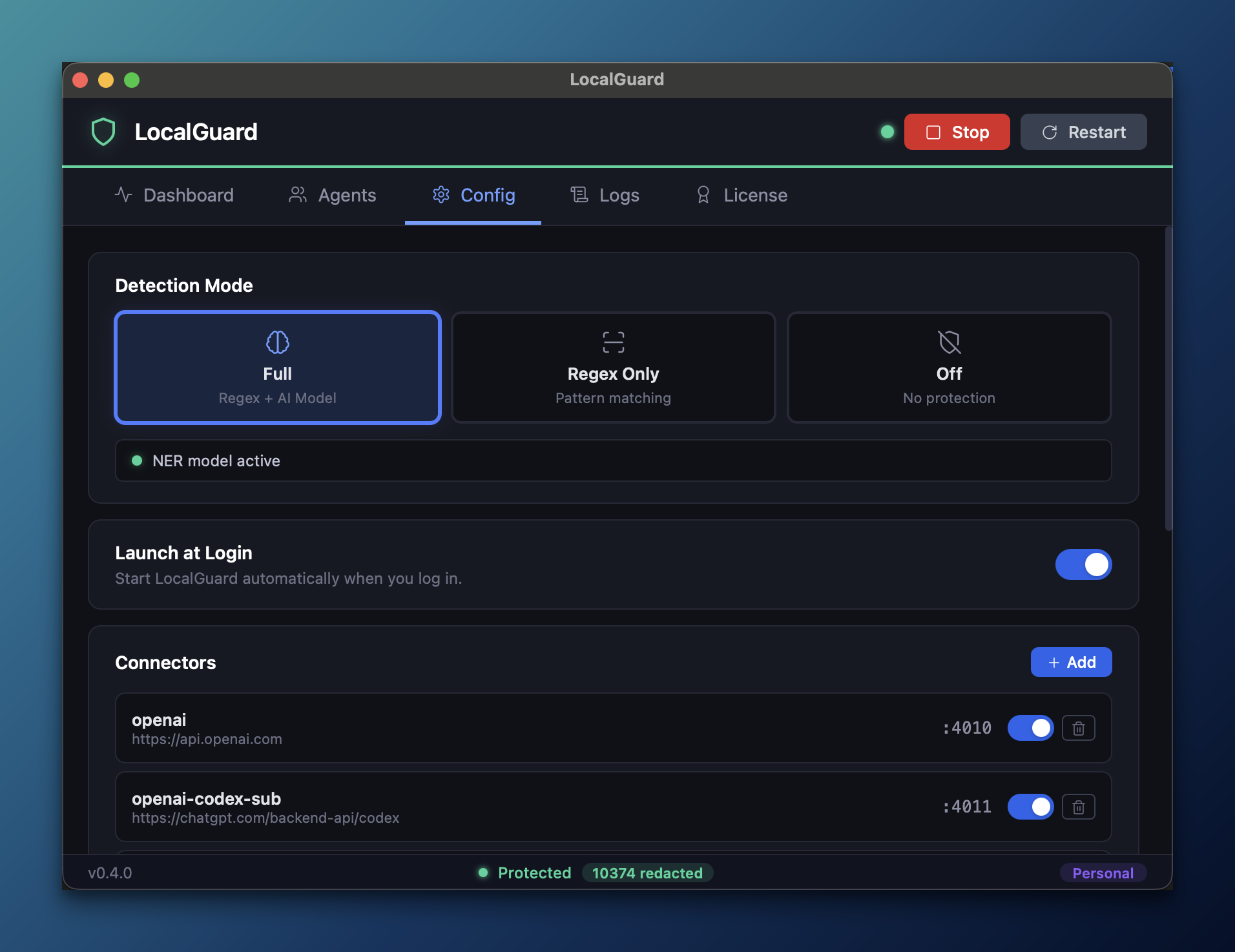

In Config → Detection Mode, choose how aggressively LocalGuard scans:

• Full — pattern matching backed by a small on-device AI model. Catches contextual entities (names, locations) that pure pattern matching misses. (default — recommended)
• Regex Only — pattern-based scanning only. Sub-millisecond overhead, ideal for low-latency setups.
• Off — LocalGuard stops masking anything; requests reach the provider exactly as you send them, secrets included. Useful for one-off debugging or comparing 'with protection / without'.

Tip: Launch at Login on the same screen makes LocalGuard start automatically on every reboot.

05

Verify it's working — the Dashboard and Logs tabs

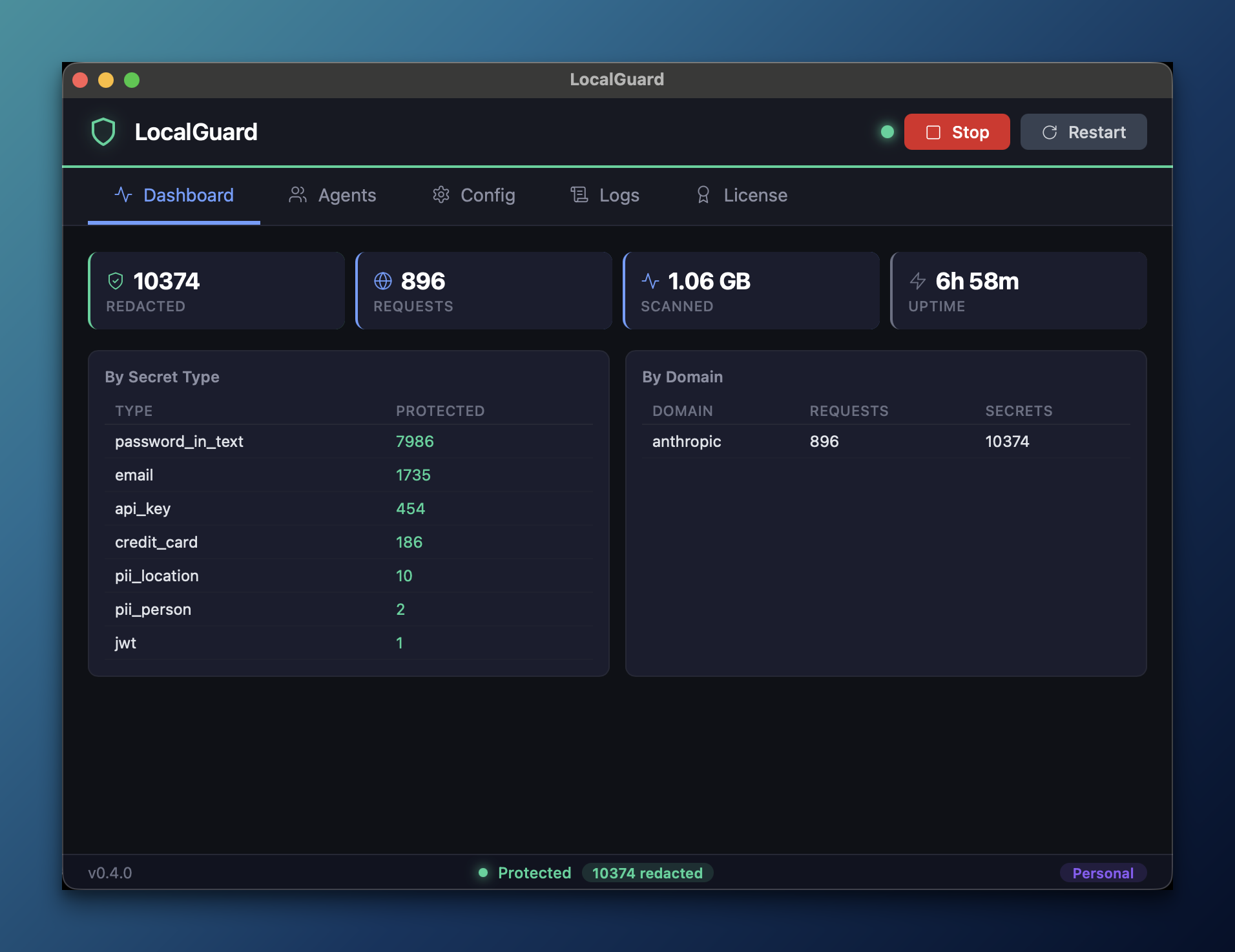

Start using your agent normally. The Dashboard shows live counters — total secrets redacted, requests proxied, bytes scanned, uptime — and breakdowns by secret type (API keys, passwords, emails, JWTs, PII) and by destination provider. Numbers ticking up = protection is working.

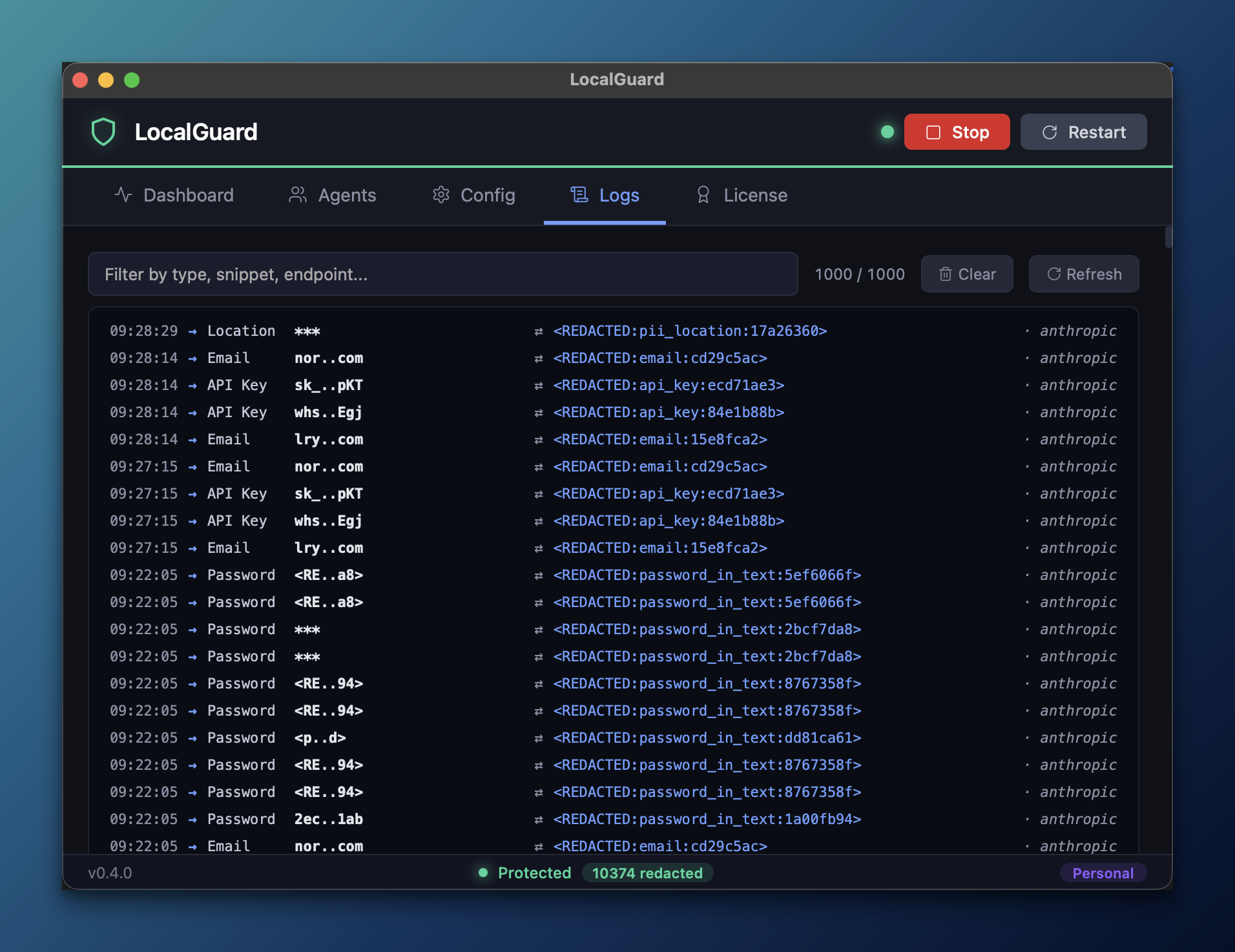

Want to see what got masked? Open the Logs tab. Each row is a real masking event — the original snippet on the left (truncated for safety), the placeholder it was replaced with on the right, plus the name of the agent that sent it. The filter narrows results by type, snippet or endpoint.

07

Or configure an agent manually

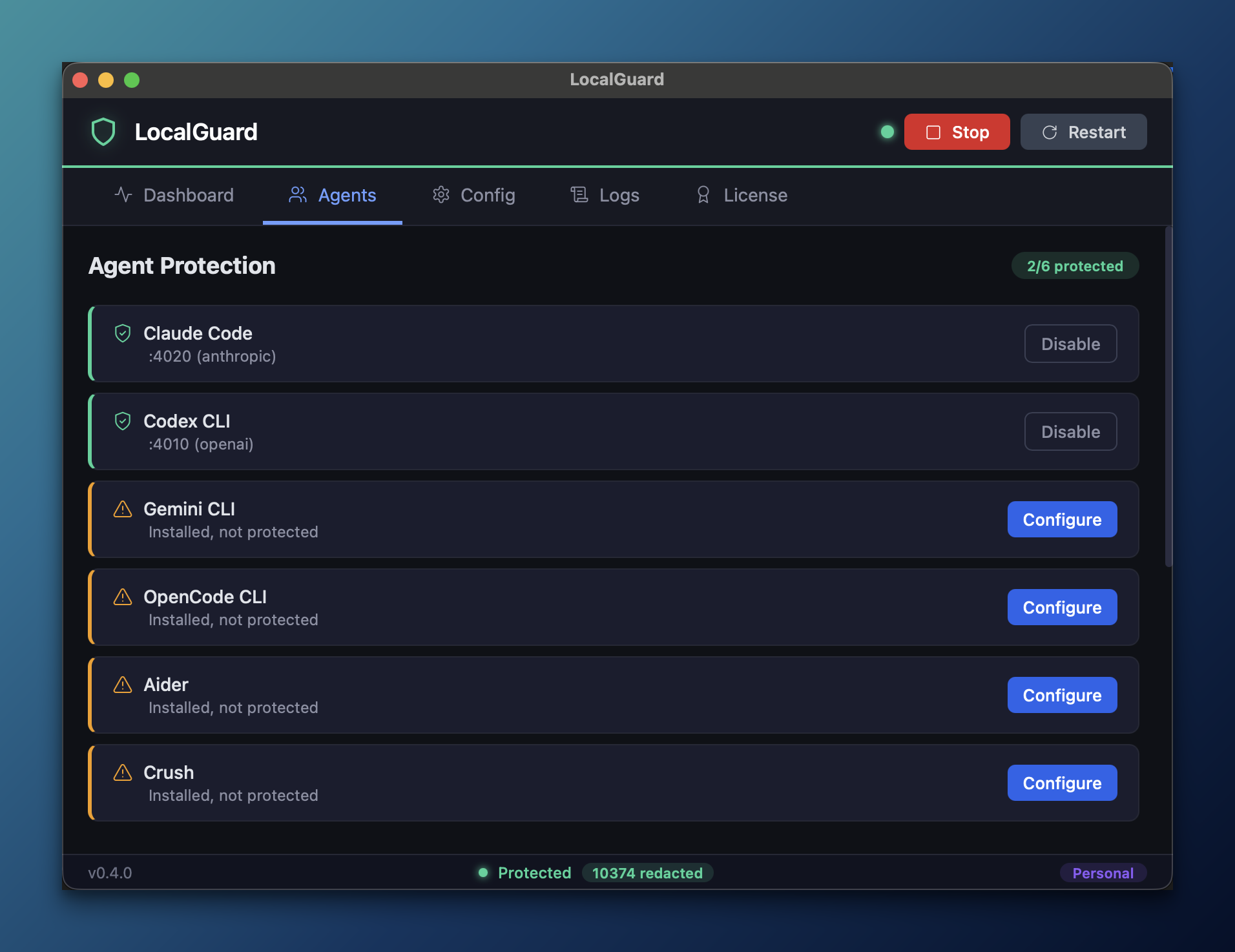

Prefer editing config files yourself, or using an agent that's not on the Agents tab? Two steps:

1. Find the local port in LocalGuard. Open Config → Connectors. Each connector shows its local port on the right (:4010, :4020, :4060, etc.). That's the address you'll point your agent at.

2. Edit the agent's config. Most AI tools have one setting that controls where API calls go — an API base URL. Replace it with LocalGuard's local URL. Here are three common ones:

• Claude Code ~/.claude/settings.json

  {
    "env": {
      "ANTHROPIC_BASE_URL": "http://127.0.0.1:4020"
    }
  }

• Codex CLI ~/.codex/config.toml

  [providers.openai]
  base_url = "http://127.0.0.1:4010/v1"

• Aider ~/.aider.conf.yml

  openai-api-base: http://127.0.0.1:4010/v1

Restart the agent. From now on it talks to LocalGuard; LocalGuard scans the payload, redacts secrets, then forwards the cleaned request upstream — and restores the original values when the response comes back.

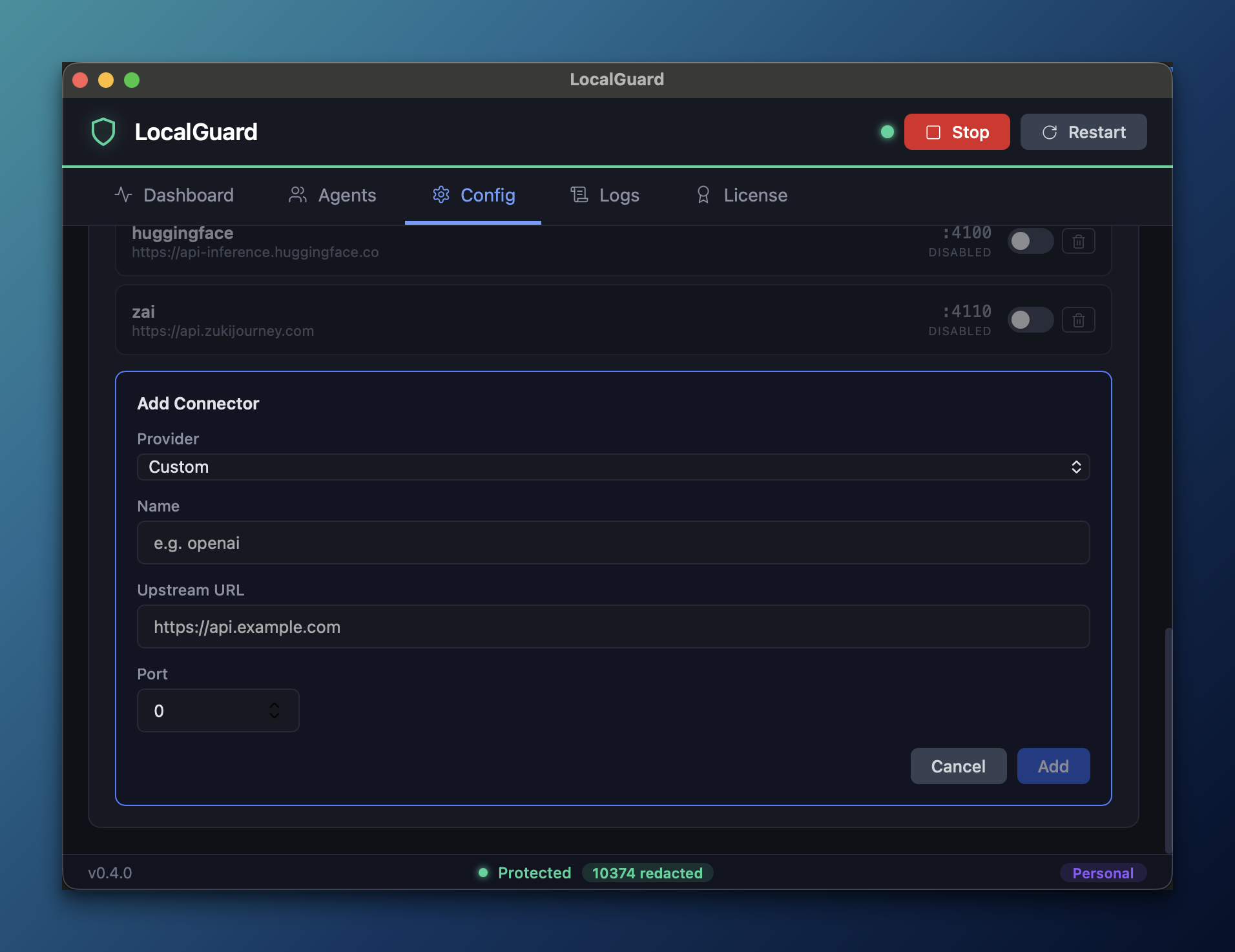

Default ports: OpenAI-compatible providers :4010, Anthropic :4020, Gemini :4060. Custom connectors you add yourself show their port next to their name on the Config tab.
On Windows: ~/ expands to %USERPROFILE%\ (e.g. C:\Users\yourname\.claude\settings.json). Most agents understand both notations directly.
